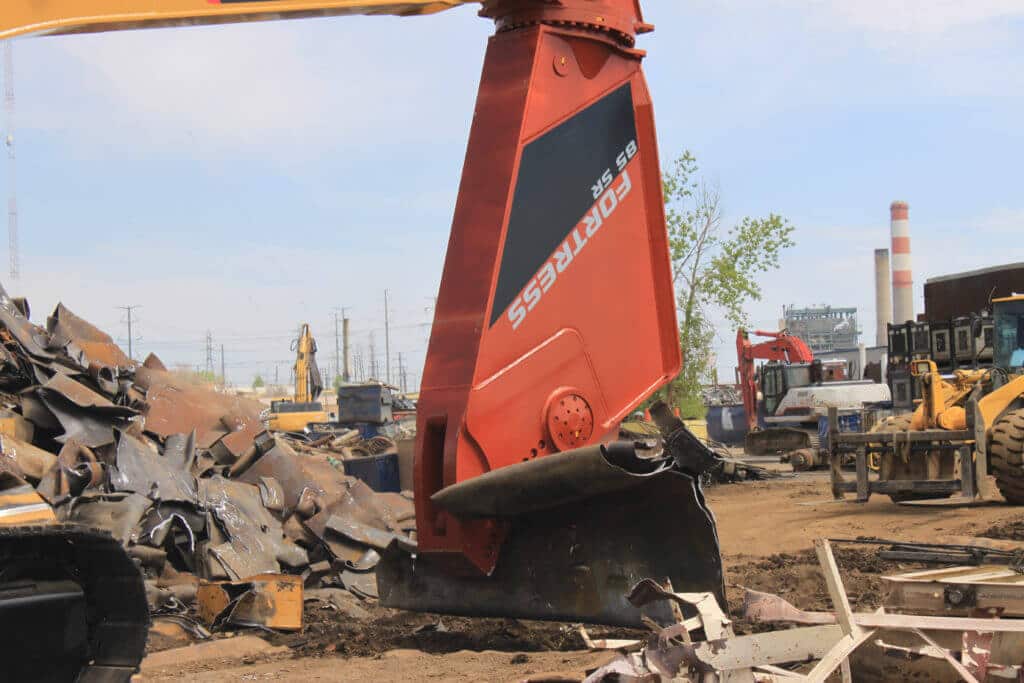

The FS85 – innovative engineering with an optimized structure for long-life and high strength to weight ratio. The upper and lower jaws are made from 6″ high-yield structural plate steel, which significantly reduces the need for laminations, and the compact main shaft gives excellent visibility. The elimination of hose inlets and the addition of a contoured reinforcement around the swing bearing strengthens the body and there is top quality rotation components that are rated for full machine pressure to ensure reliability. Watch this video to see highlights of the Fortress Mobile Shears. |
| FS85R | FS85S | |
| Shear Weight | 17,900 lbs 8,119 KGs |
17,100 lbs 7,756 KGs |
| Jaw Opening | 36 in 914 mm |
36 in 914 mm |
| Jaw Depth | 37 in 940 mm |
37 in 940 mm |
| Reach | 13’4″ 4.06 m |
13’1″ 3.99 m |
| Min-Max Excavator Boom Mount | 90,000 – 130,000 lbs 41 – 59 T |
90,000 – 130,000 lbs 41 – 59 T |
| Min. Excavator Stick Mount | 170,000 – 200,000 lbs 77 – 91 T |
170,000 – 200,000 lbs 77 – 91 T |
| Download (Standard Measurements) | Spec Sheet | Spec Sheet |
| Download (Metric Measurements) | Spec Sheet | Spec Sheet |
