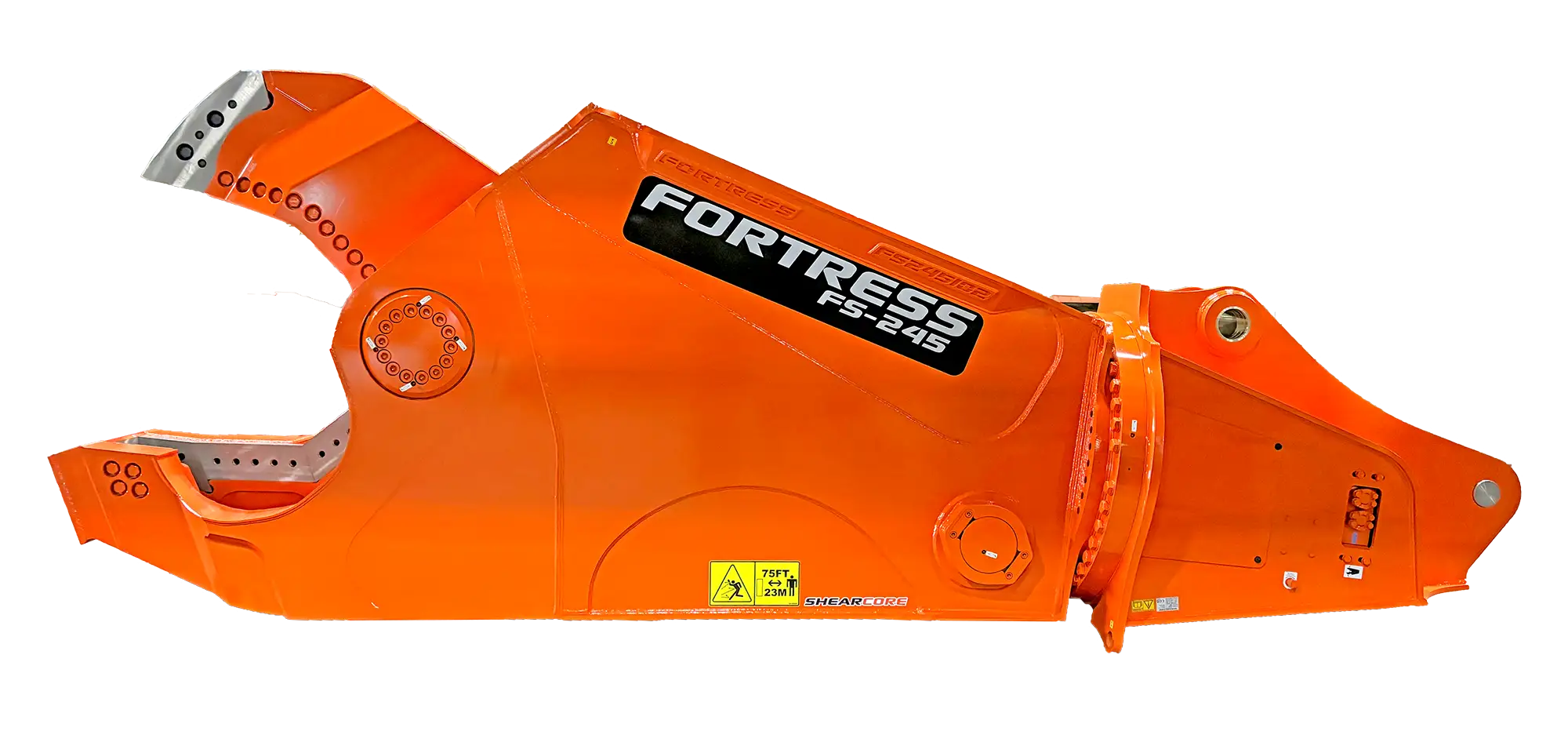

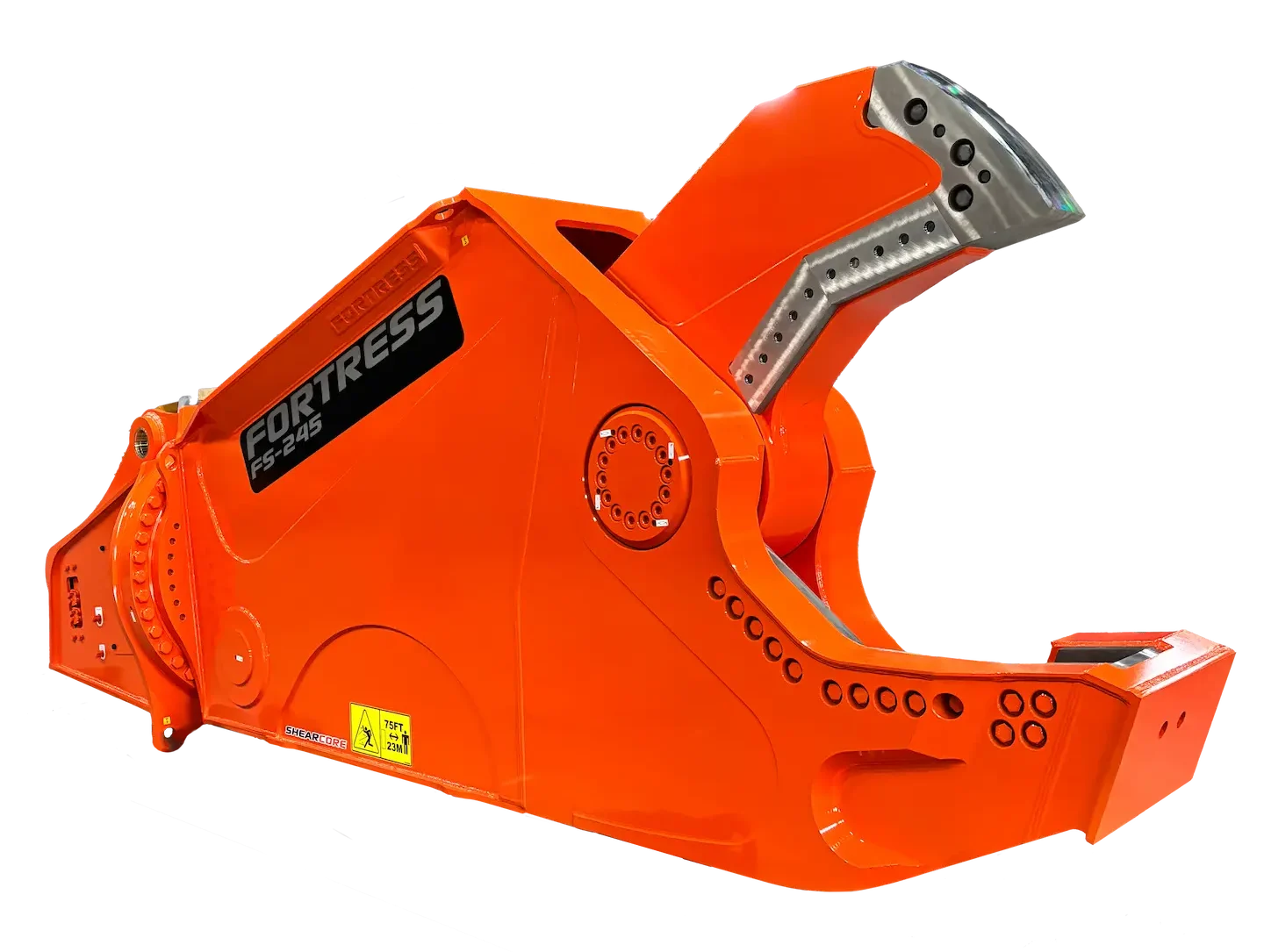

The flagship of the Fortress lineup, the FS245 was developed for high-reach demolition where power, weight, and safety are critical. Its innovative design allows contractors to safely process large steel structures at elevation while maximizing reach and productivity.
| Model | Shear Weight (lbs) | Jaw Opening (inches) | Jaw Depth (inches) | Reach (feet inches) | Min Excavator Boom Mount (lbs) | Min Excavator Stick Mount (lbs) | ||
|---|---|---|---|---|---|---|---|---|
| FS25R | 5,900 | 23″ | 19″ | 8’ 8” | 30,000 | 45,000 | Spec Sheet | View Details |
| FS35R | 7,200 | 26” | 23” | 9’ 5” | 40,000 | 67,000 | Spec Sheet | View Details |
| FS45R | 11,200 | 28″ | 28″ | 10′ 8″ | 50,000 | 90,000 | Spec Sheet | View Details |
| FS55R | 13,000 | 30″ | 30″ | 11′ 8″ | 57,000 | 110,000 | Spec Sheet | View Details |
| FS75R | 15,700 | 32″ | 32″ | 12′ 0″ | 75,000 | 125,000 | Spec Sheet | View Details |
| FS85R | 17,200 | 35″ | 38″ | 13′ 4″ | 82,000 | 165,000 | Spec Sheet | View Details |
| FS95R | 21,600 | 39″ | 42″ | 13′ 7″ | 105,000 | 185,000 | Spec Sheet | View Details |
| FS145R | 28,600 | 43″ | 46″ | 14′ 4″ | 145,000 | 250,000 | Spec Sheet | View Details |
| FS245R | 50,600 | 48″ | 53″ | 17’4″ | Contact Factory | Contact Factory | Spec Sheet | View Details |
| Model | Shear Weight (kg) | Jaw Opening (mm) | Jaw Depth (mm) | Reach (meters) | Min Excavator Boom Mount (Met. ton) | Min Excavator Stick Mount (Met Ton) | ||
|---|---|---|---|---|---|---|---|---|
| FS25R | 2,676 | 584 | 483 | 2.64 | 14 – 27 | 20 – 41 | Spec Sheet | View Details |
| FS35R | 3,266 | 660 | 584 | 2.87 | 18 – 27 | 30 – 54 | Spec Sheet | View Details |
| FS45R | 5,080 | 711 | 711 | 3.25 | 23 – 41 | 41 – 64 | Spec Sheet | View Details |
| FS55R | 5,897 | 762 | 762 | 3.56 | 26 – 41 | 50 – 64 | Spec Sheet | View Details |
| FS75R | 7,121 | 813 | 813 | 3.66 | 34 – 54 | 58 – 82 | Spec Sheet | View Details |
| FS85R | 7,802 | 889 | 965 | 4.06 | 37 – 59 | 75 – 91 | Spec Sheet | View Details |
| FS95R | 9,798 | 991 | 1,067 | 4.14 | 48 – 91 | 84 – 113 | Spec Sheet | View Details |
| FS145R | 12,791 | 1,092 | 1,168 | 4.36 | 66 -104 | 113 – 141 | Spec Sheet | View Details |
| FS245R | 22,952 | 1,219 | 1,343 | 5.28 | Contact Factory | Contact Factory | Spec Sheet | View Details |
“I have to say these machines are built to last! The structure is super strong and sound, blade flips, changes, and maintenance is a breeze. I’ve also noticed that areas that are common and prone to stress cracks and breaks on competitor’s machines are not happening on the Fortress.”
McBride Metal LLC
Jacob McBride
