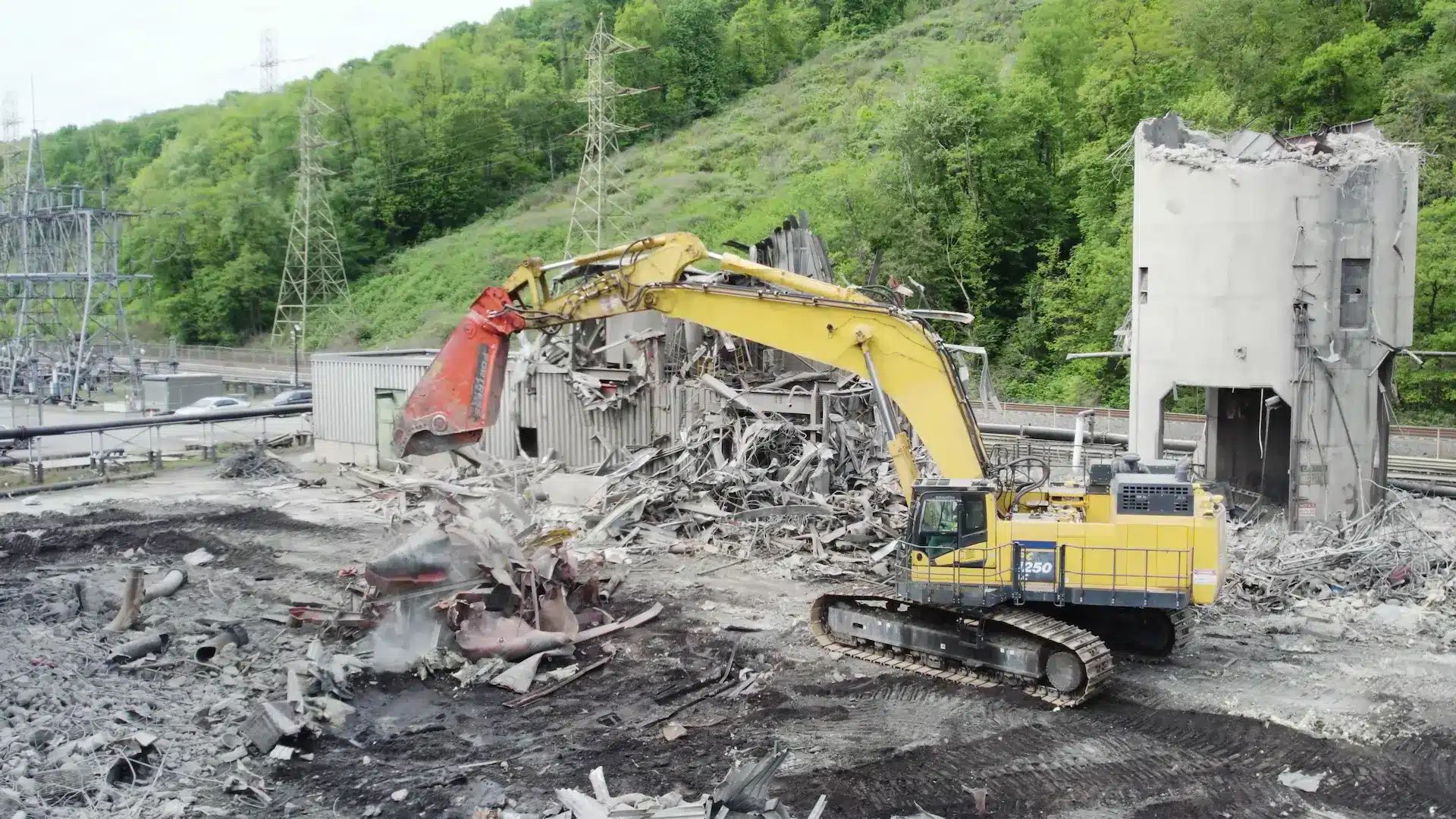

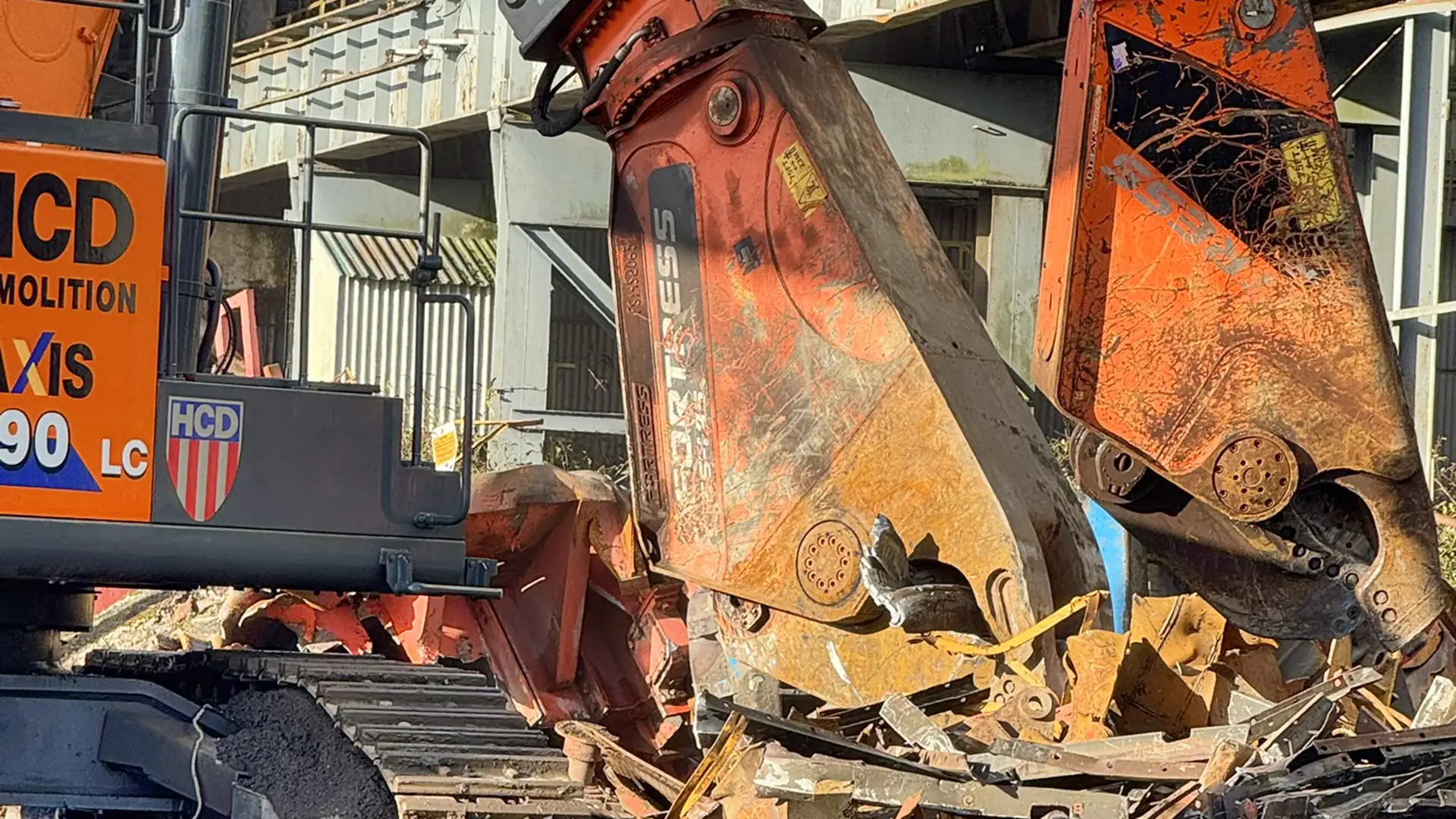

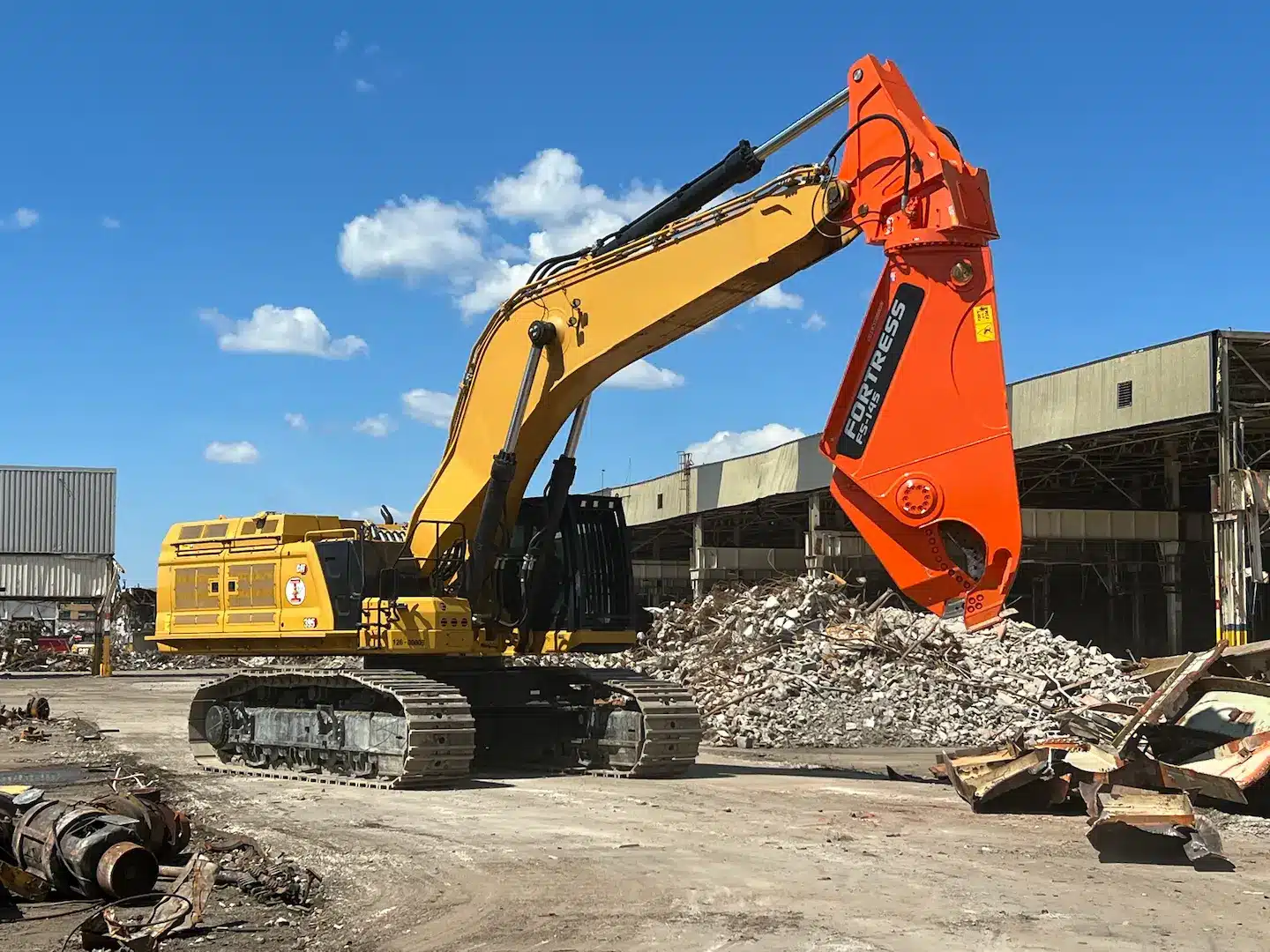

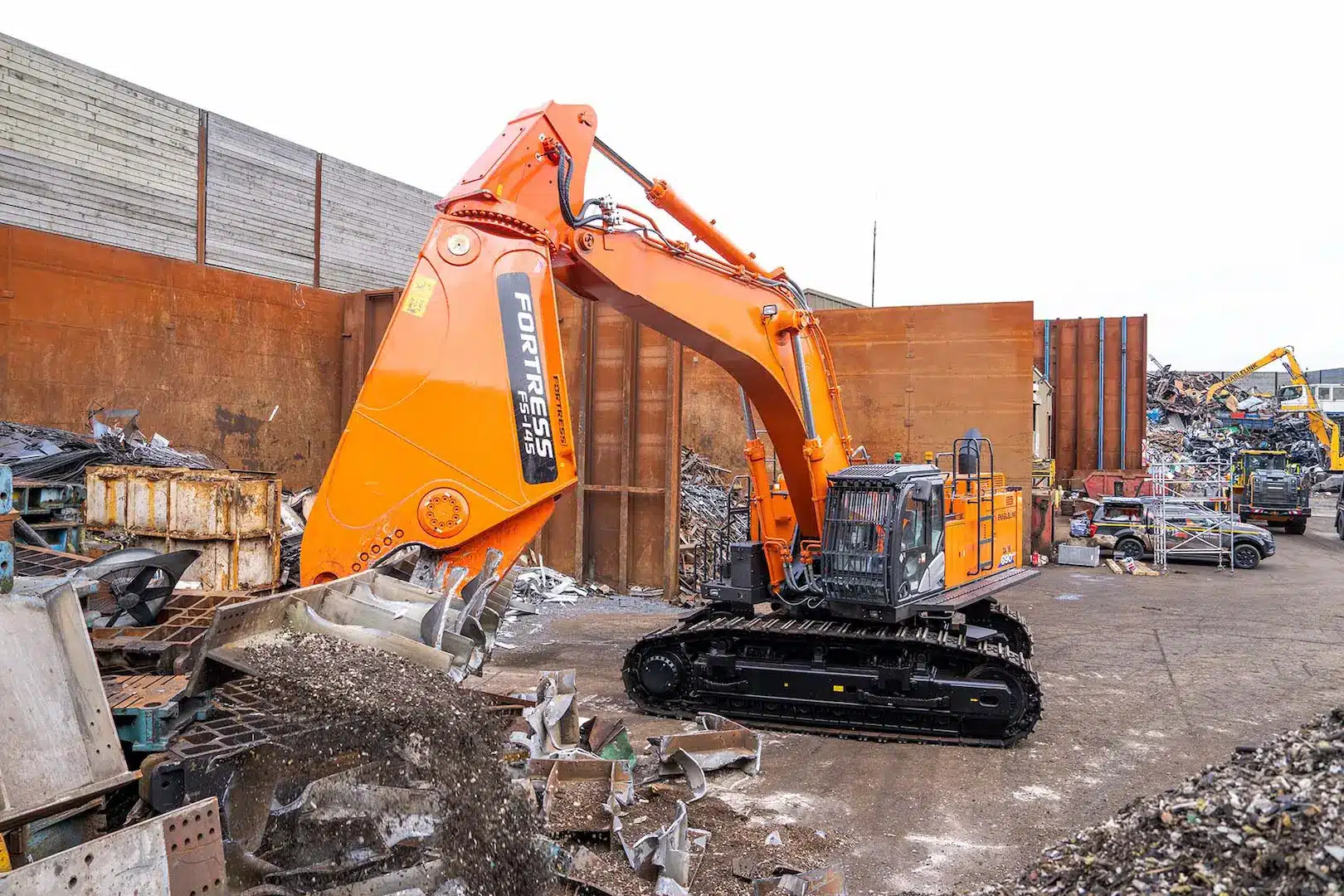

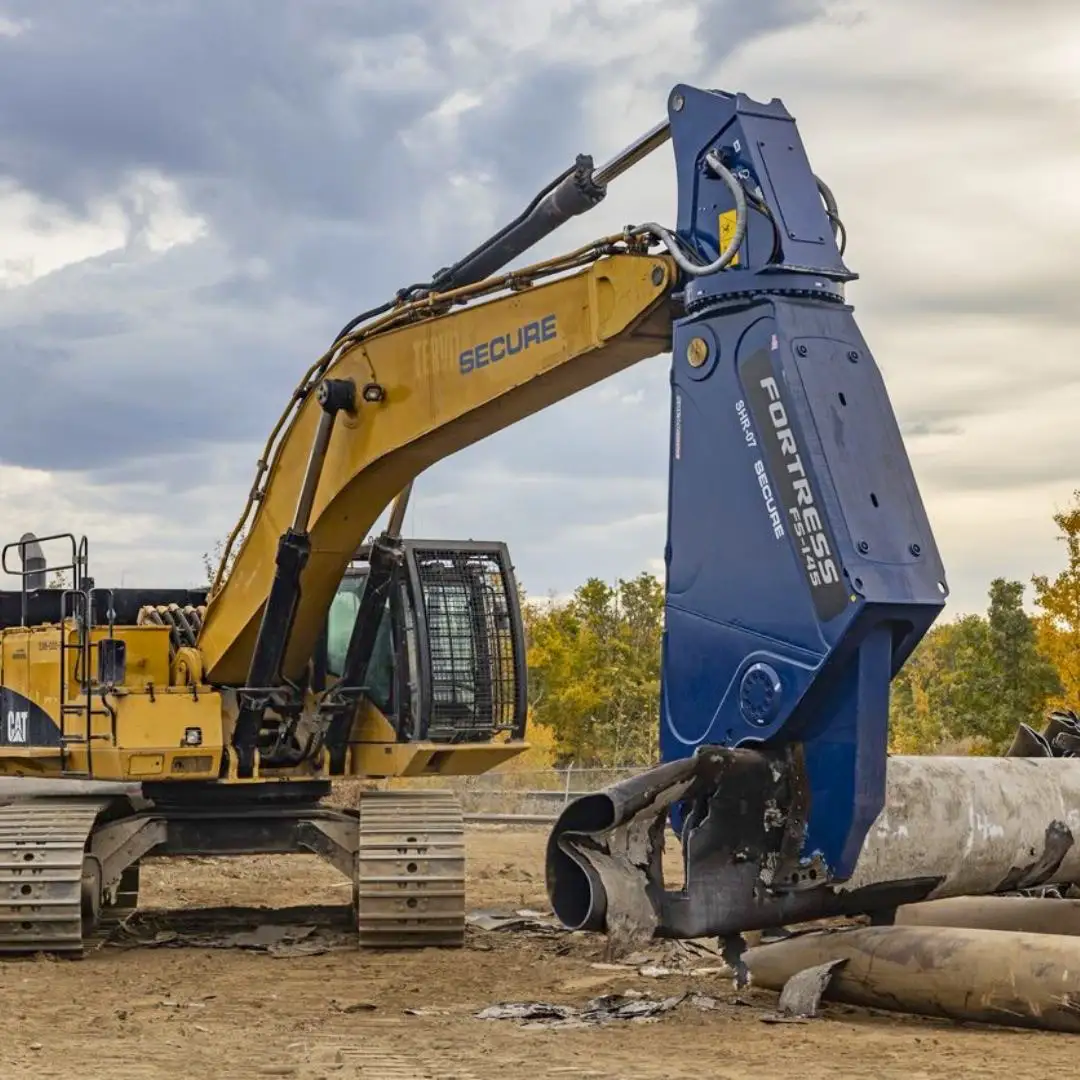

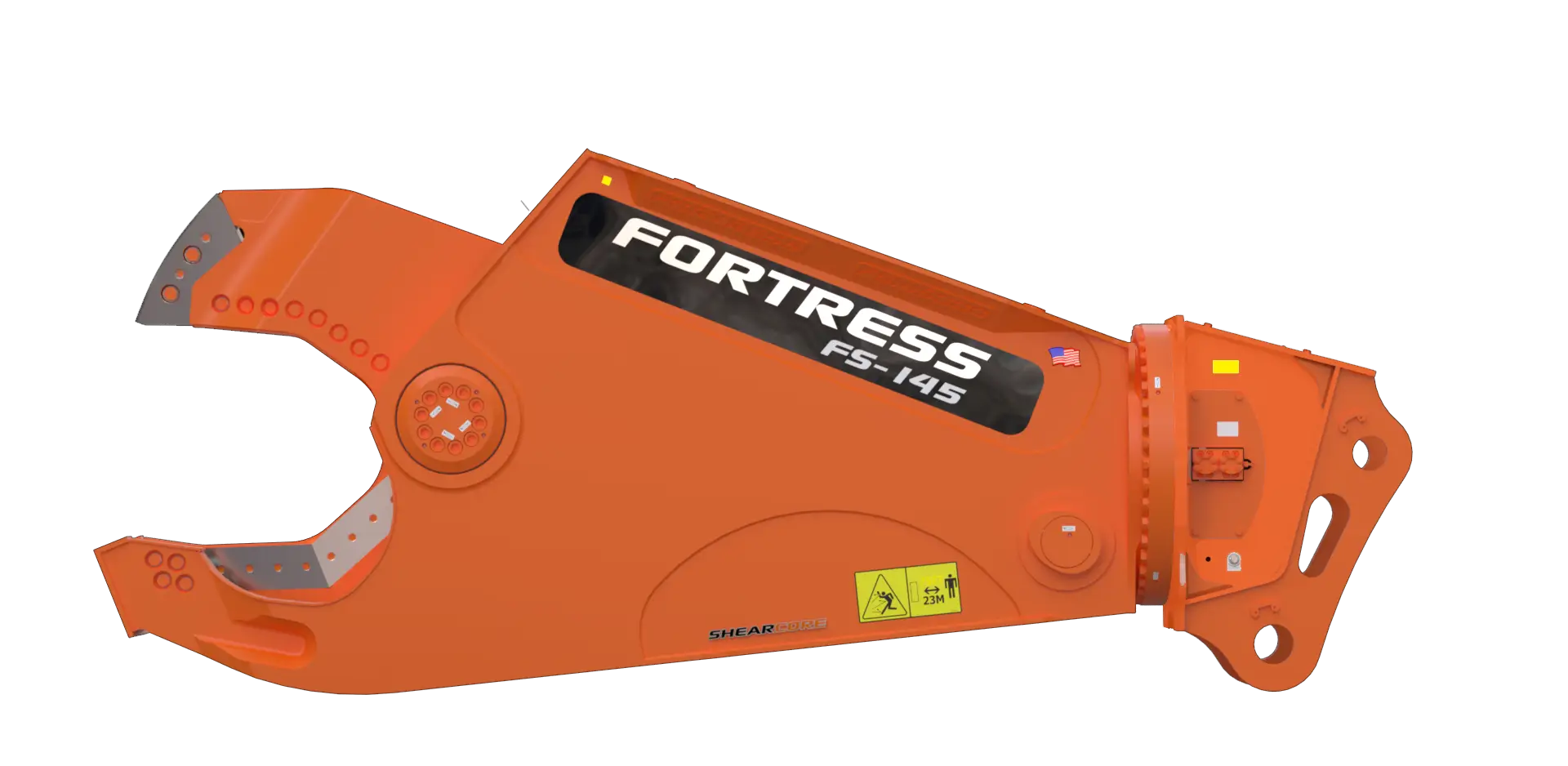

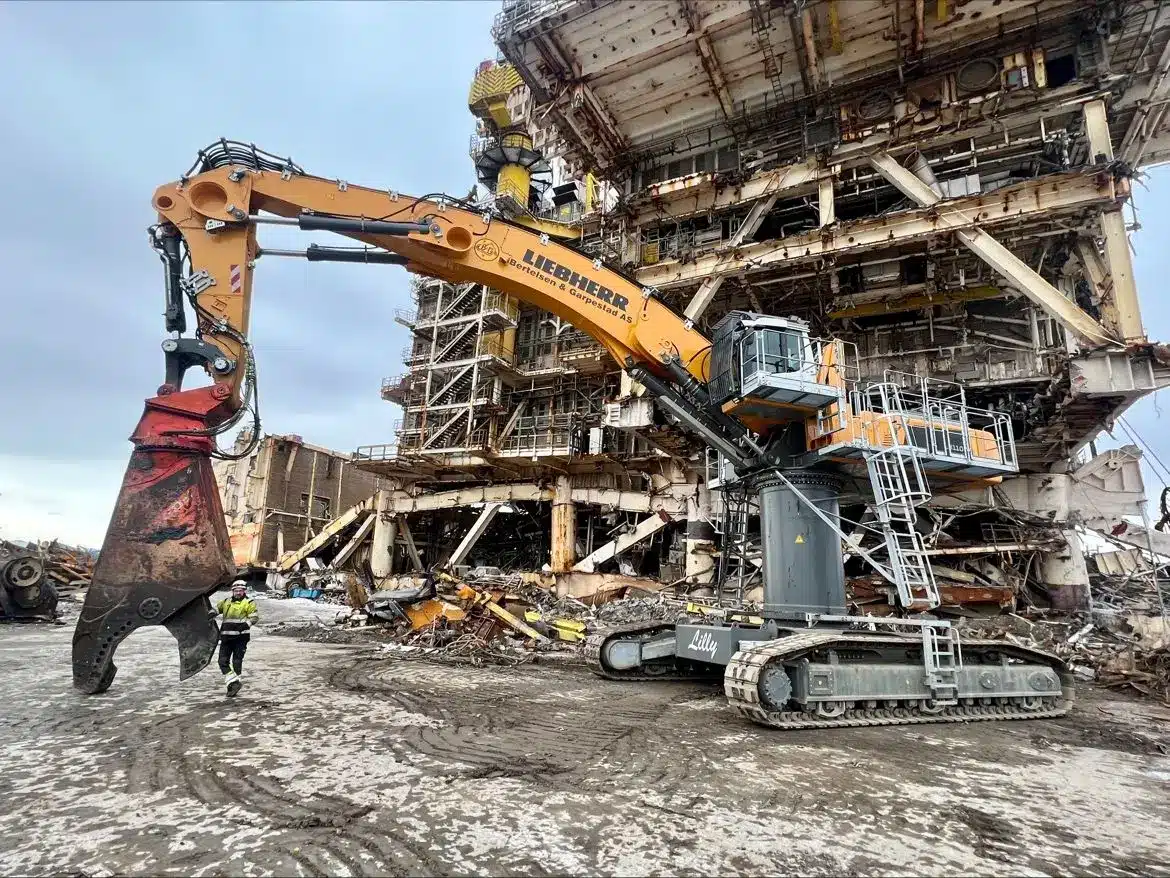

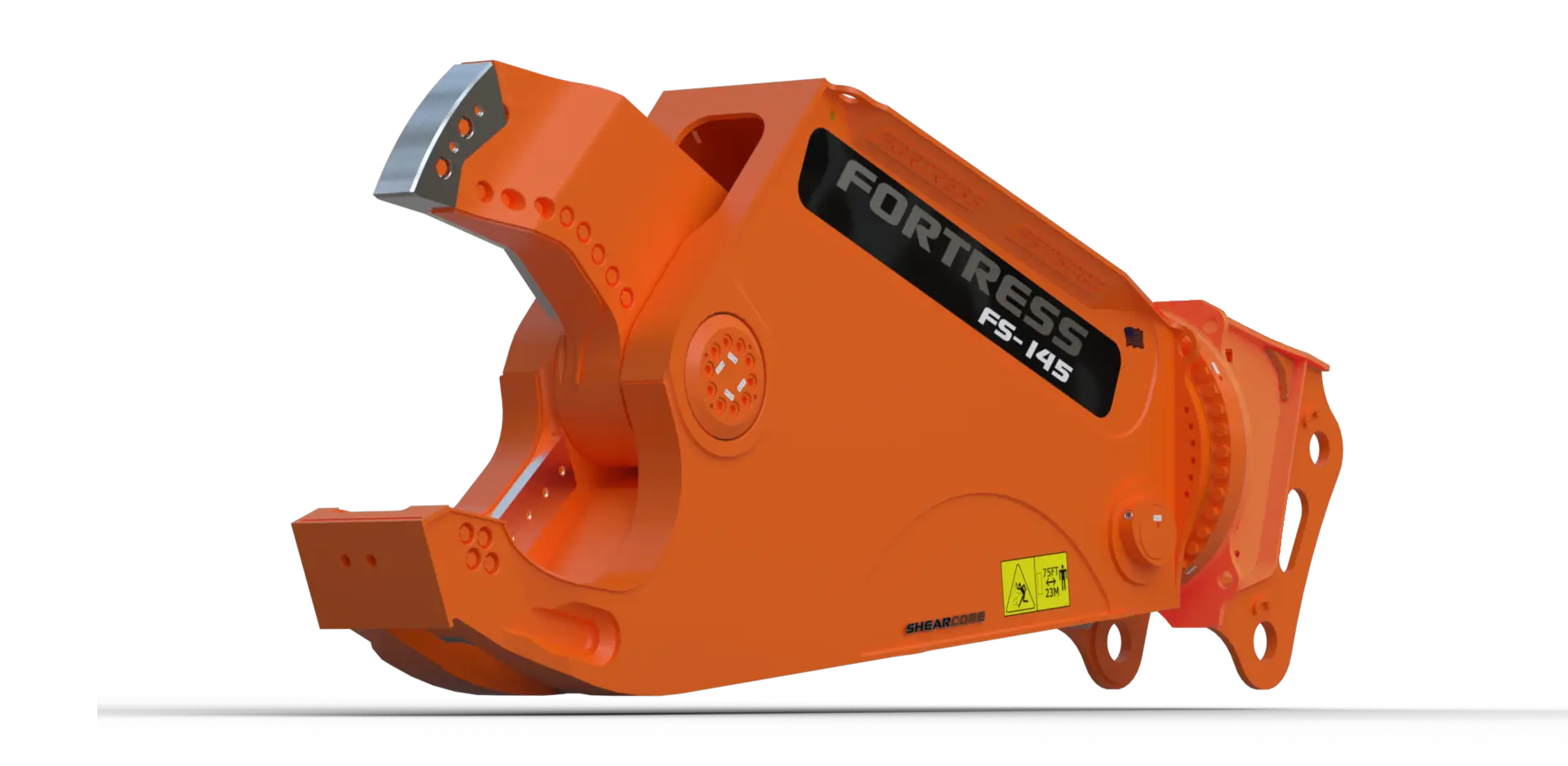

Built for large carrier classes and serious demolition projects, the FS145 offers exceptional cutting power for challenging industrial and infrastructure work. Its structurally superior design stands up to the toughest conditions while maintaining maximum productivity.
| Model | Shear Weight (lbs) | Jaw Opening (inches) | Jaw Depth (inches) | Reach (feet inches) | Min Excavator Boom Mount (lbs) | Min Excavator Stick Mount (lbs) | ||
|---|---|---|---|---|---|---|---|---|
| FS25R | 5,900 | 23″ | 19″ | 8’ 8” | 30,000 | 45,000 | Spec Sheet | View Details |
| FS35R | 7,200 | 26” | 23” | 9’ 5” | 40,000 | 67,000 | Spec Sheet | View Details |
| FS45R | 11,200 | 28″ | 28″ | 10′ 8″ | 50,000 | 90,000 | Spec Sheet | View Details |
| FS55R | 13,000 | 30″ | 30″ | 11′ 8″ | 57,000 | 110,000 | Spec Sheet | View Details |
| FS75R | 15,700 | 32″ | 32″ | 12′ 0″ | 75,000 | 125,000 | Spec Sheet | View Details |
| FS85R | 17,200 | 35″ | 38″ | 13′ 4″ | 82,000 | 165,000 | Spec Sheet | View Details |
| FS95R | 21,600 | 39″ | 42″ | 13′ 7″ | 105,000 | 185,000 | Spec Sheet | View Details |
| FS145R | 28,600 | 43″ | 46″ | 14′ 4″ | 145,000 | 250,000 | Spec Sheet | View Details |
| FS245R | 50,600 | 48″ | 53″ | 17’4″ | Contact Factory | Contact Factory | Spec Sheet | View Details |
| Model | Shear Weight (kg) | Jaw Opening (mm) | Jaw Depth (mm) | Reach (meters) | Min Excavator Boom Mount (Met. ton) | Min Excavator Stick Mount (Met Ton) | ||
|---|---|---|---|---|---|---|---|---|
| FS25R | 2,676 | 584 | 483 | 2.64 | 14 – 27 | 20 – 41 | Spec Sheet | View Details |
| FS35R | 3,266 | 660 | 584 | 2.87 | 18 – 27 | 30 – 54 | Spec Sheet | View Details |
| FS45R | 5,080 | 711 | 711 | 3.25 | 23 – 41 | 41 – 64 | Spec Sheet | View Details |
| FS55R | 5,897 | 762 | 762 | 3.56 | 26 – 41 | 50 – 64 | Spec Sheet | View Details |
| FS75R | 7,121 | 813 | 813 | 3.66 | 34 – 54 | 58 – 82 | Spec Sheet | View Details |
| FS85R | 7,802 | 889 | 965 | 4.06 | 37 – 59 | 75 – 91 | Spec Sheet | View Details |
| FS95R | 9,798 | 991 | 1,067 | 4.14 | 48 – 91 | 84 – 113 | Spec Sheet | View Details |
| FS145R | 12,791 | 1,092 | 1,168 | 4.36 | 66 -104 | 113 – 141 | Spec Sheet | View Details |
| FS245R | 22,952 | 1,219 | 1,343 | 5.28 | Contact Factory | Contact Factory | Spec Sheet | View Details |
“I have to say these machines are built to last! The structure is super strong and sound, blade flips, changes, and maintenance is a breeze. I’ve also noticed that areas that are common and prone to stress cracks and breaks on competitor’s machines are not happening on the Fortress.”
McBride Metal LLC
Jacob McBride
