FRG Series – Fortress Rotating Grapple

Designed and manufactured in Superior, WI

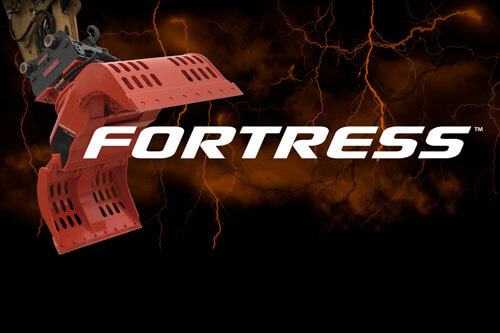

FRG Series – Fortress Rotating Grapple

The Fortress Rotating Grapples are perfect for industrial demolition and intensive sorting. The FRG series is designed to be maintenance friendly and extremely strong.

  • Strong rotating headpiece and an oversized, double slewing ring
  • High torque motors allowing the grab to be in any position
  • OilQuick Automatic Quick Coupler System is offered on any Fortress product
  • Extra long stroke means the teeth blades always align – even if the edges are worn.
Contact ShearCore

Models

Metric

ModelWeight (kg.)Volume (l/dm3)Open Dimension (m.)Closing Force (ton)Maximum Operating Pressure
(bar)
Carrier Size (ton)
FRG5N2101001.121.23171.8-5
FRG9N4411411.352.63175-9
FRG12N8973321.734.131710-15
FRG15N1,0154091.834.134514-18
FRG22N1,3055451.985.334515-22
FRG28N1,5506362.186.134520-28
FRG37N2,0209002.417.034525-37
FRG48N2,28511322.418.034535-48
FRG60N3,860154613.0511.534545-60

Weights may vary depending on configuration options, listed weight is typical 2nd member mount

Standard

ModelWeight (lbs.)Volume (gal)Open Dimension (in.)Closing Force (ton)Maximum Operating Pressure
(psi)
Carrier Size (lbs.)
FRG5N46322441.24,6004,000-11,000
FRG9N93731532.64,60011,000-19,000
FRG12N1,91873684.14,60022,000-33,000
FRG15N2,23790724.15,00031,000-39,000
FRG22N2,877120785.35,00033,000-48,000
FRG28N3,417140866.15,00044,000-61,000
FRG37N4,453198957.05,00055,000-81,000
FRG48N5,037249958.05,00077,000-105,000
FRG60N8,51034012011.55,00099,000-132,000

Weights may vary depending on configuration options, listed weight is typical 2nd member mount
